M12-PANEL FEED THROUGH A-CODED
Artnr: | 7000-42111-0000000 |
Gewicht: | 0.034 kg |
Land van oorsprong: | CZ |
Beschikbaar
Beschrijving
Control cabinet entry system

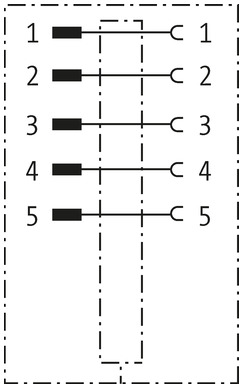

Male - female
M12, 5-pole
A-coded
shielded
Male - female
M12, 5-pole
A-coded
shielded




Technische data
Side 1
Family form head 1 | M12 |
---|---|
Coding head 1 | A |
Side 2
Family form head 2 | M12 |
---|---|
Coding head 2 | A |
Electrical data | Supply
Operating voltage AC (UL-listed) | 30 V |
---|---|
Operating voltage AC max. | 60 V |
Operating voltage DC (UL-listed) | 30 V |
Operating voltage DC max. | 60 V |
Current operating per contact max. | 4 A |
Installation | Connection
Tightening torque | 0,6 Nm |
---|---|
Mounting set | M16 x 1.5 |
Device protection | Electrical
Rated surge voltage | 1,5 kV |
---|---|
Material group (IEC 60664-1) | I |
Degree of protection (EN IEC 60529) | IP65, IP67 |
Protection NEMA | 3, 4, 6P |
Protection degree additional condition | inserted, screwed |
Pollution Degree | 2 |
Mechanical data | Material data
Coating housing | nickel plated |
---|---|
Material housing | Brass |
Mechanical data | Mounting data
Mounting method | inserted, screwed, Shaking protection |
---|
Environmental characteristics | Climatic
Operating temperature min. | -25 °C |
---|---|
Operating temperature max. | 85 °C |
Conformities, approvals, certificates
UL 50E | yes |
---|
Classifications
ECLASS-6.0 | 27143423 |
---|---|
ECLASS-6.1 | 27279220 |
ECLASS-7.0 | 27440103 |
ECLASS-8.0 | 27440103 |
ECLASS-9.0 | 27440109 |
ECLASS-10.1 | 27440109 |
ECLASS-11.1 | 27440109 |
ECLASS-12.0 | 27440109 |
ETIM-5.0 | EC001855 |
Commerciële gegevens
Douane tarief nummer | 85366990 |
---|---|
GTIN | 4048879143233 |
Verpakkingseenheid | 1 |
