RJ45 Push Pull male 0° with cable AIDA  7000-74601-7963000
Product kan afwijken van illustratie

RJ45 Push Pull male 0° with cable AIDA

PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 30m
Artnr: 7000-74601-7963000
Alternatieve artikelen:    7000-74607-7963000
Gewicht: 2.153 kg
Land van oorsprong:  DE
Leveringsdatum op aanvraag
 Productvergelijking
Prijs per stuk:
Downloaden naar Easy-Import-Export

Beschrijving


Product fulfills requirements according to UN/ECE R118

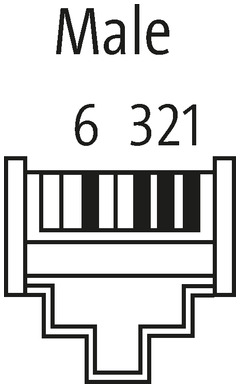

Male straight
RJ45PP, 4-pole
shielded
Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

Cable length 30 m
Technical Data
Operating voltage max. 60 V DC
Rated surge voltage 1.0 kV
Operating current per contact max. 1.5 A
Transfer parameters CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Transfer rate up to 100 Mbit/s full duplex
Material group IEC 60664-1, category I
Locking of ports Push Pull
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) without
General data
Pollution Degree 3
Temperature range -25...+85 °C, depending on cable quality

Cable
Cable identification 796
Approval (cable) cURus (AWM-Style 20549/11602), CE-conform
Cable weight [g/m] 69,3 g
Material wire Cu wire, bare
Resistor (core) max. 55 Ω/km (20 °C)
Construction (core) 7× 0.254 mm
Diameter (core) 1× 4× AWG22/7
Material wire isolation PE
Wire-Ø incl. isolation 1.4 mm ±5%

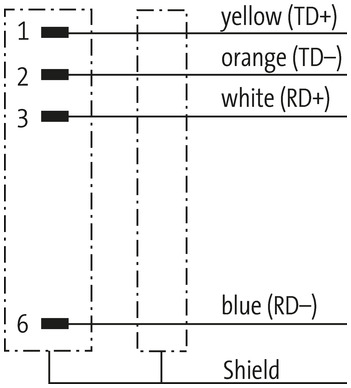

Color/numbering of wires wh, ye, bl, or
Shield yes
Shield (Type) Copper braid
Optical shield cover min. 85%
Material jacket PUR
Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Outer-Ø (jacket) 6.7 mm ±5%
Color jacket green
chemical resistance Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
thermal resistance flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Nominal voltage 300 V
Test voltage 2000 V AC (test duration 1 min)
Temperature range (fixed) -40...+80 °C
Temperature range (mobile) -30...+70 °C
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 12× outer Ø
No. of bending cycles (C-track) max. 3 Mio. (25 °C)
Traversing distance (C-track) max. 5 m (horizontal)
Travel speed (C-track) max. 3.3 m/s
Acceleration (C-track) max. 2 m/s²
Torsion stress ±180°/m
No. of torsion cycles max. 1 Mio. (25 °C)

ECLASS-6.0 27061801
ECLASS-6.1 27060307
ECLASS-7.0 27060307
ECLASS-8.0 27060307
ECLASS-9.0 27060307
ECLASS-10.1 27060307
ECLASS-11.1 27060307
ECLASS-12.0 27060307
ETIM-5.0 EC002599

Douane tarief nummer 85444210
GTIN 4048879843188
Verpakkingseenheid 1
