MIUW ANALOG COUPLER COMPONENT
Product kan afwijken van illustratie

MIUW ANALOG COUPLER COMPONENT

IN: 0..20 mA - OUT: 0..10 V
Artnr: 44212
Alternatieve artikelen:    6644212
Gewicht: 0.171 kg
  In productie
 Productvergelijking
Prijs per stuk:

Ook interessant voor U

INPUT: 0...20 mA
OUTPUT: 0...10 V DC, 20 mA
Screw terminals
Input and output galvanically separated
General data
Test isolation voltage 1.5 kV
Mounting method DIN-rail mountable (EN 60715)
Temperature range -25...+50 °C (storage temperature -40...+80 °C)

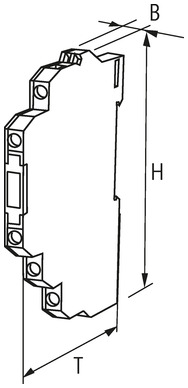

Dimensions H×W×D 91×6.2×70 mm
Technical Data
Operating voltage 24 V DC ±20%, smoothed
Operating current 50...70 mA
Tolerance max. 0.5%
Frequency max. 500 Hz
Current input signals
Load approx. 250 Ω
Voltage output signals
Load max. 25 mA
Current outputs
Load max. 500 Ω
Description
Functional description The Murrelektronik analog converters convert standard signal formats (0...10 V, 0...20 mA, 4...20 mA) galvanically separated into one of these signal formats. Due to an integrated current limiter the output is short-circuit and overload protected. Module
Commerciële gegevens
Douane tarief nummer 85437090
EAN 4048879028462
eClass 27210990
Land van oorsprong CZ
Verpakkingseenheid 1

Gegevens Over Artikel:
  • Download Datablad
  • Download Approvals and certificates 44212_04-08.17_ce_z_e.pdf
  • Download China RoHS information EPUP-25_CHR_x_1.pdf
  • Download Drawing Files 52000_stp_x_a.zip
  • Download Drawing Files 52000_dxf_x_a.zip
