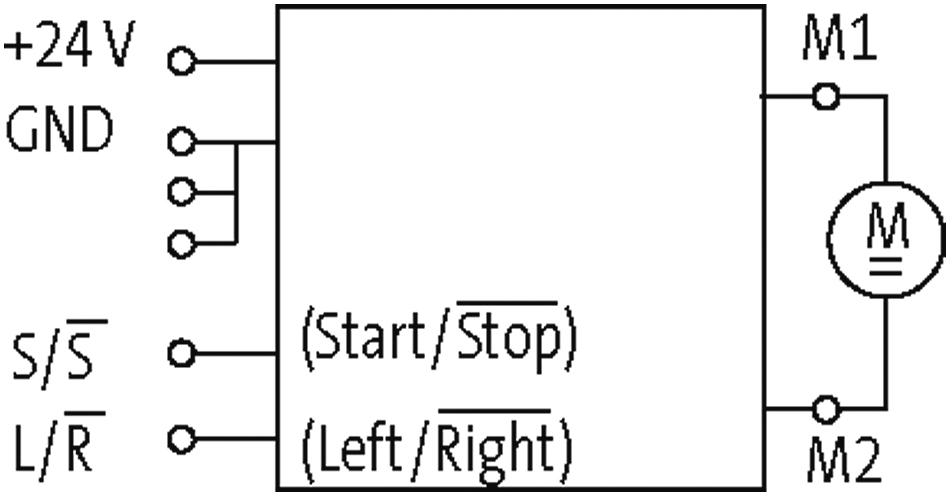

DC-MOTOR COMMUTATING CIRCUIT
IN: 24 VDC - OUT: 24 VDC / 3 A
| Artnr: | 6650140 |
| Alternatieve artikelen: | 50140 |
| Gewicht: | 0.04 kg |
| Land van oorsprong: | CZ |
Beschikbaar
Beschrijving
Transistor 3 A
24 V DC
Spring clamp terminals
Start-stop/left-right (active stop mode)
Over current / temperature monitoring
24 V DC
Spring clamp terminals
Start-stop/left-right (active stop mode)
Over current / temperature monitoring
Technische data
Output
| Leakage current (output is open) | max. 10 mA |
|---|---|
| Switching time ON/OFF | 1.2/10 ms |
| LED display | LED (red): error (over current/over heated) |
| Saturation voltage (across output) | max. 1.4 V DC |
| Switching voltage | 19.2...30 V DC |
| Changing time | max. 50 ms |
| Switching frequency | max. 1 Hz (motor dependant) |
| Highest current | approx. 6 A for 100 ms |
| Switching current per output | max. 3 A |
Input
| Voltage range OFF | 0...5 V DC |
|---|---|
| Voltage range ON | 15...30 V DC |
| LED display | LED (yellow): right running; LED (green): left running |
| Input current | 10 mA |
General data
| Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
|---|---|
| Temperature range | 0...+50 °C |
| Test isolation voltage | no galvanic separation |
| Housing | Black plastic, flame retardant |
| Dimensions H×W×D | 80×12.4×70 mm |
classifications
| ECLASS-6.0 | 27371604 |
|---|---|
| ECLASS-6.1 | 27370905 |
| ECLASS-7.0 | 27370905 |
| ECLASS-8.0 | 27370905 |
| ECLASS-9.0 | 27370905 |
| ECLASS-10.1 | 27370905 |
| ECLASS-11.1 | 27370905 |
| ECLASS-12.0 | 27370905 |
| ETIM-5.0 | EC002615 |
