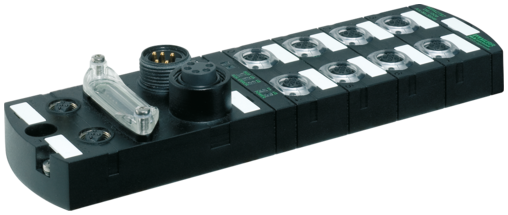

Digital inputs/outputs
DI8 DO8 - 2 A
Ethernet 10/100 Mbit/s; M12, D-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.

Technische data

Input

Sensor supply US	24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type	for 3-wire sensors or mechanical switches, PNP

Output

Switching current per output	max. 2 A (short-circuit and overload protected)

General data

Mounting method	2-hole screw mounting, compatible with I/O modules of MVK model range
Temperature range	-25...+55 °C (storage temperature -25...+70 °C)
Protection	IP67
Dimensions H×W×D	39×63×225 mm

EtherCAT

Addressing	automatic or Device ID by rotary switch

Diagnostic

Communication status	via LED
Diagnostic via BUS	per module and channel
Diagnostic via LED	per module and channel
Monitoring - under voltage	yes
Monitoring - no voltage	yes

Connections

Fieldbus	Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply	7/8", 5-pole, 2× max. 9 A
I/O ports	M12, 5-pole, A-coded

Commerciële gegevens

ECLASS-6.0	27242604
ECLASS-6.1	27242604
ECLASS-7.0	27242604
ECLASS-8.0	27242604
ECLASS-9.0	27242604
ECLASS-10.1	27242604
ECLASS-11.1	27242604
ECLASS-12.0	27242604
ETIM-5.0	EC001599
Douane tarief nummer	85389099
EAN	4048879051989
Verpakkingseenheid	1

Downloads

Gegevens Over Artikel:

Download Product-PDF
Download Approval: CSA CA 55082_080128-0-000_C3211-07_csa_z_c.pdf
Download Approval: CSA US 55082_080128-0-000_C3211-87_csau_z_c.pdf
Download Approval: UL Listed CA 55082_E201820_NRAQ7_ulc_z_a.pdf
Download Approval: UL Listed US 55082_E201820-NRAQ_ul_z_b.pdf
Download Configuration Files: ESI 55081_IMPACT67_KF4_x_13.zip
Download Construction files: DXF 55091_dxf_d_b.zip
Download Construction files: P8 55081_p8_2_50.zip
Download Construction files: P8 55082_p8_2_50.zip
Download Construction files: STP 55085_stp_x_b.zip
Download Document: Installation guide 55081_ina_6_17.pdf
Download Document: User manual 55369_hdb_x_19.zip
Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
Download Information: Certificate of conformity UKCA 55082_879-04.16_uk_z_a.pdf
Download Information: EU declaration of conformity 55082_879-04.16_ce_z_b.pdf
Download Information: MTTF Report 55082_SN29500(40°C)-Berechnung_mttf_p_a.pdf
