CUBE67 BUS NODES 56501
Product may differ from image

CUBE67 BUS NODES

Profibus DP
Art.No.: 56501
Alternative product:    56521
Weight: 0.45 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

PROFIBUS DP
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Bus technologies

General data
Mounting method 2-hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67

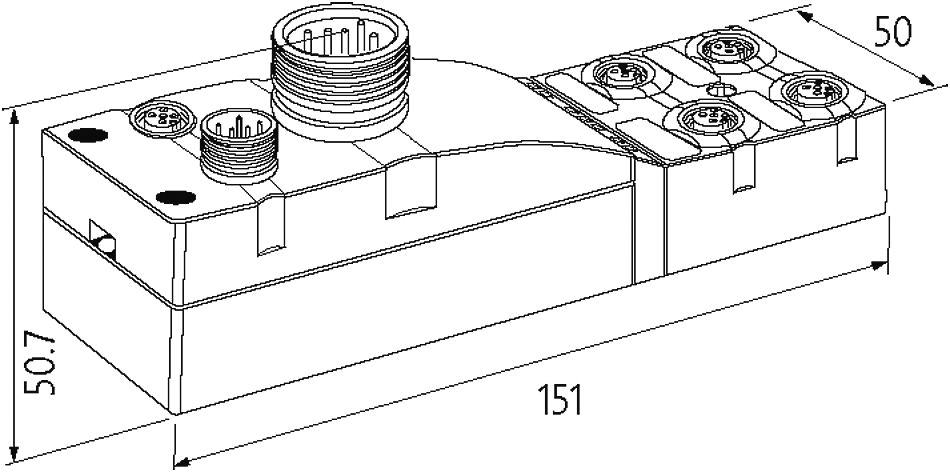

Dimensions H×W×D 151×50×50.3 mm
Module supply
Operating voltage 24 V DC (EN 61131-2)
Current consumption max. 120 mA
Cube system
Module capacity max. 16
Diagnostic
Communication status via LED and BUS
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
PROFIBUS
Addressing Rotary switch 0...99
Connections
Fieldbus PROFIBUS 12 Mbit/s; M12, B-coded
Sensor-system/actuator supply 7/8", 5-pole, 2× max. 8 A
Internal system connection M12, 6 pole; max. 4 A

ECLASS-6.0 27242608
ECLASS-6.1 27242608
ECLASS-7.0 27242608
ECLASS-8.0 27242608
ECLASS-9.0 27242608
ECLASS-10.1 27242608
ECLASS-11.1 27242608
ECLASS-12.0 27242608
ETIM-5.0 EC001604
customs tariff number 85389099
EAN 4048879048736
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 56501_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 56501_E201820-NRAQ_ul_z_b.pdf
  • Download Configuration Files: GSD 56501_Cube67_KFG_x_12.zip
  • Download Construction files: DXF 56501_dxf_x_a.zip
  • Download Construction files: P8 56501_p8_2_50.zip
  • Download Construction files: STP 56501_stp_x_a.zip
  • Download Document: Installation guide 56501_ina_6_25.pdf
  • Download Document: User manual 56970_hdb_x_25.zip
  • Download Document: User manual 56980_hdb_x_48.zip
  • Download Document: User manual 56971_hdb_x_37.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 56501_14-11.15_uk_z_a.pdf
  • Download Information: Diverses Cube67_ComDrv_Help.zip
  • Download Information: Diverses Cube67_ComDrv.zip
  • Download Information: EU declaration of conformity 56501_14-11.15_ce_z_c.pdf
  • Download Information: MTBF Report 56501_SN29500(40°C)-BerechnungV1.4_mtbf_p_b.pdf
  • Download Information: MTTF Report 56501_SN29500(40°C)-BerechnungV1.4_mttf_p_c.pdf
  • Download Software: Function blocks 56501_Cube67_ComDrv_TB4_x_10.zip
